2.8inch Touch Display Module For Raspberry Pi Pico 262K Colors 320x240 Pixels SPI Interface Custom PCB prototype industrial pcba

$18.60
$18.60
$58.60
Sold out

Raspberry Pi Pico is NOT included.


DESCRIPTION

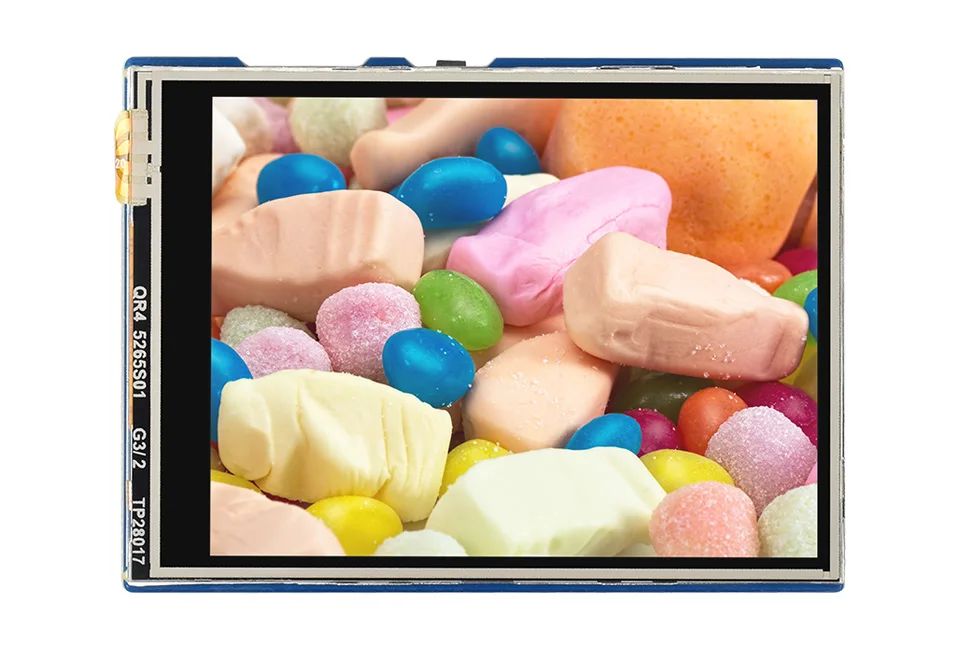

2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320X240 Pixels, SPI Interface


2.8" Touch Display Module For Pico

Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

  • Size2.8"

  • Resolution320X240

  • Display Color262K Colors

  • Display PanelIPS

  •

  • Touch TypeResistive

  • InterfaceSPI

  • Driver/ControllerST7789/XPT2046

Features At A Glance

  • 320X240 resolution, IPS screen, 262K colors, clear and colorful displaying effect

  • Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions

  • MicroSD card slot for storing images and direct displaying them easily

  • Programmable backlight control, power saving

  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE

5V

RESOLUTION

320X240 pixels

COMMUNICATION INTERFACE

SPI

DISPLAY SIZE

57.60 X 43.20 mm

DISPLAY PANEL

IPS

PIXEL SIZE

0.18 X 0.18 mm

DRIVER

ST7789

DIMENSIONS

70.20 X 50.20 mm

TOUCH CONTROLLER

XPT2046




Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Picois NOT included.

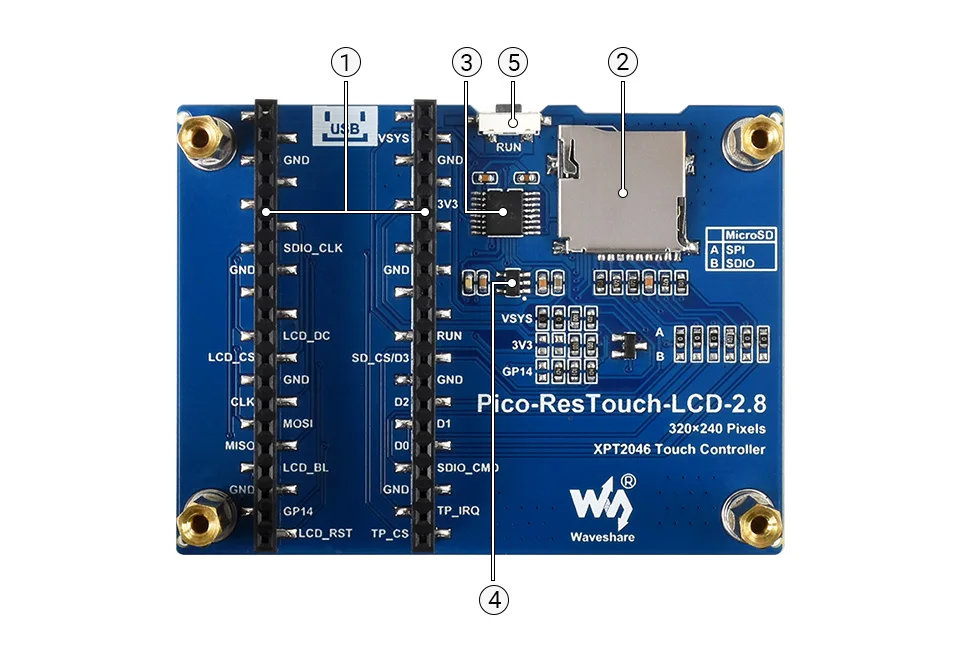

What's On Board

  1. Rapsberry Pi Pico header

  2. MicroSD card slot

3.XPT2046
resistive touch controller

4.RT9193-33
3.3V linear voltage regulator

5.Pico reset button

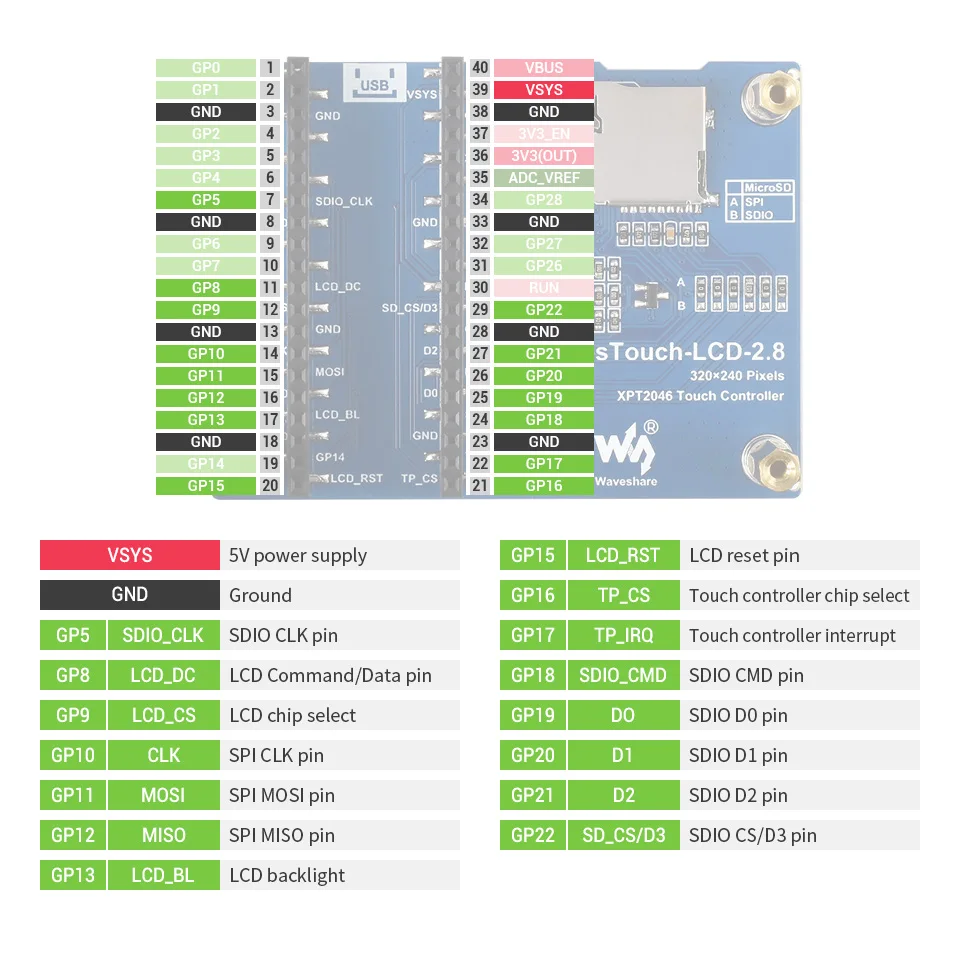

Pinout Definition

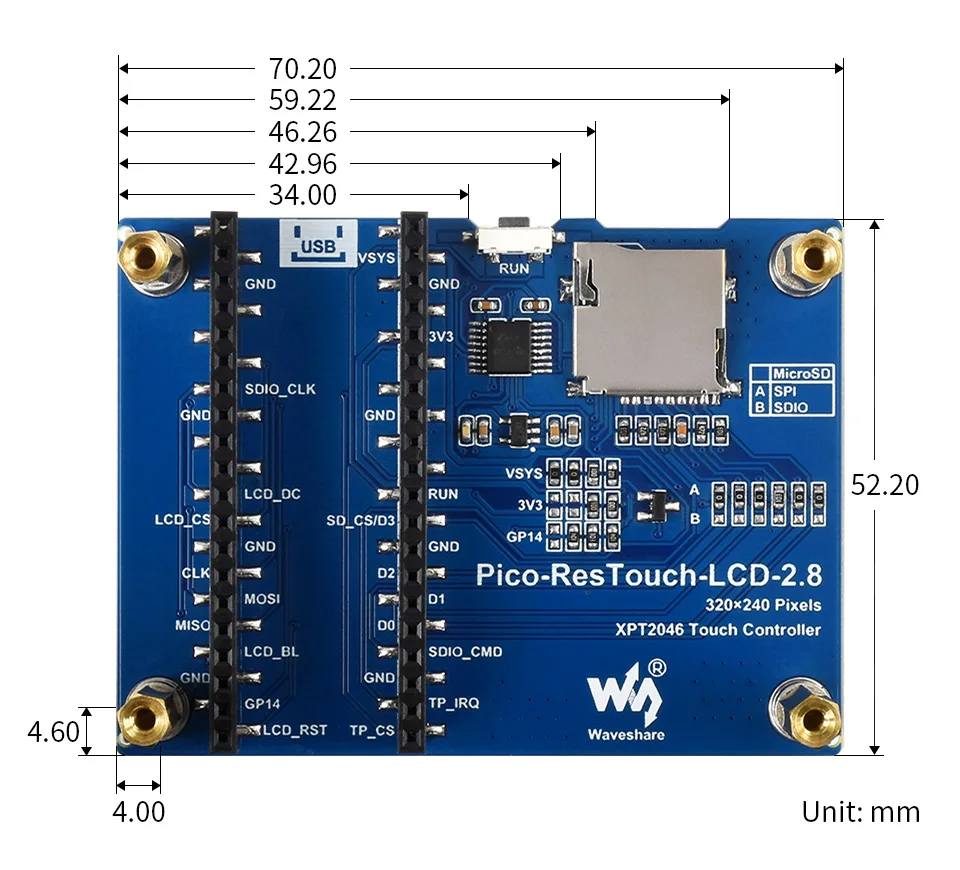

Outline Dimensions

Selection Guide

PART NUMBER

TYPE

DISPLAY COLOR

PIXELS

DISPLAY SIZE (MM)

BUS

DRIVER

DIMENSIONS (MM)

TOUCH

Pico-LCD-0.96

IPS

65K

160X80

21.70X10.80

SPI

ST7735S

52.00X25.00



Pico-LCD-1.14

IPS

65K

240X135

24.91X14.86

SPI

ST7789

52.00X25.00



Pico-LCD-1.3

IPS

65K

240X240

23.40X23.40

SPI

ST7789

52.00X26.50



Pico-LCD-1.8

TFT

65K

160X128

35.04X28.03

SPI

ST7735S

52.00X34.50



Pico-ResTouch-LCD-2.8

IPS

262K

320X240

57.60X43.20

SPI

ST7789

70.20X50.20

X


PACKAGE CONTENT



Weight:0.051 kg

  1. Pico-ResTouch-LCD-2.8 x1

  2. Standoffs pack x1
