AX7035 Marca XILINX A7 FPGA Placa de desarrollo Artix-7 XC7A35T Ethernent HDMI PFC

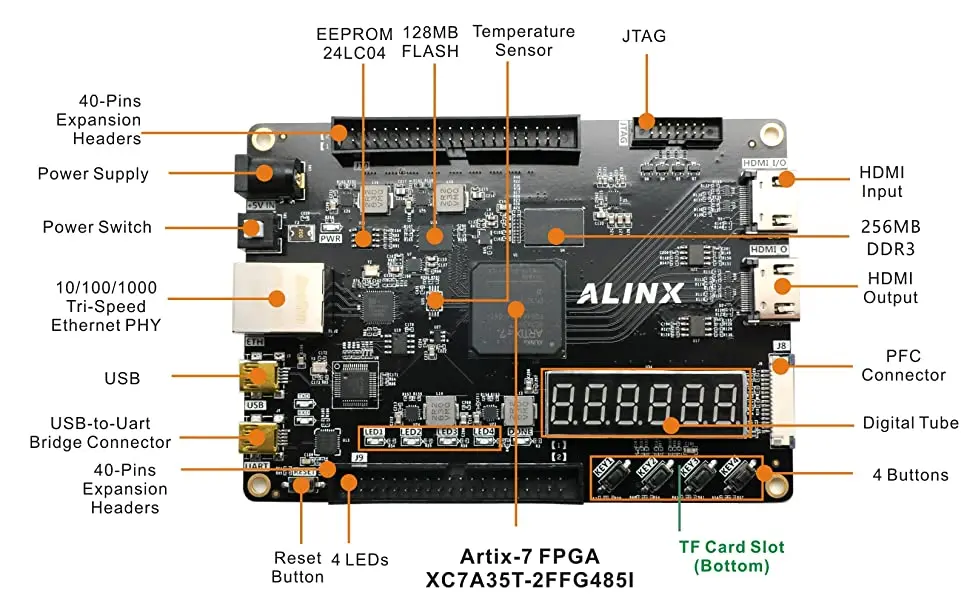

Xilinx Artix-7 FPGA and VIVADO Entry FPGA Development Platform FPGA:Xilinx Artix-7 FPGA XC7A35T-2FGG484I 2GB DDR3 SDRAM up to 400MHz / 800Mbps 16bit bus, 128MB QSPI Flash, EEPROM 24LC04, SD Card Slot Interface Connector Tri-Speed 10/100/1000 Mbps Ethernet (RGMII), HDMI Input, HDMI Video Output, PFC Connector Temperature Sensor, USB-to-Uart Bridge Connector, Digital Tube Two 40-pin connectors, expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module Designed and manufactured by ALINX, that is XILINX Alliance Member in china. Provide schematic, user manual in PDF, Verilog HDL demos and experiments guideline
FPGA: Xilinx Artix-7 XC7A35T-2FGG484I FPGA
FPGA: Xilinx Artix-7 XC7A35T-2FGG484I FPGA Clocking: Fixed Oscillator 50MHz output, used as the “system” clock for the FPGA Configuration: Onboard JTAG configuration circuitry to enable configuration over ALINX Brand Xilinx download cables such as the Platform Cable USB II; Memory: 2GB DDR3 SDRAM up to 400MHz / 800Mbps, 16bit bus; QSPI Flash: 128Mbit; SD Card Slot; IIC EEPROM: 4Kbit (2*256*8bit) Communication & Networking 1 Ethernet port, 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY HDMI Input/Output Interface; USB 2.0 Interface USB-to-UART Bridge Connector Display: HDMI video Output (Can also be used as input); 6 digit digital tube; 5 Buttons and 7 LEDs Digital: Temperature Sensor Input, The accuracy is 0.5 degrees Expansion Connectors 2-port 0.1 inch spacing standard 40-pin expansion headers 15-pin FPC Connector (Such as connect with MIPI Camera Module) Power: 5V DC Adapter
