Banana Pi BPI-W2 smart NAS router，RTD1296 chip design
Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )
Introduction:
Banana PI BPI-W2 is a highly integrated multimedia network router with Realtek RTD1296 chip design ;it can be used for high wireless performance, homeentertainment,home automation and so on…

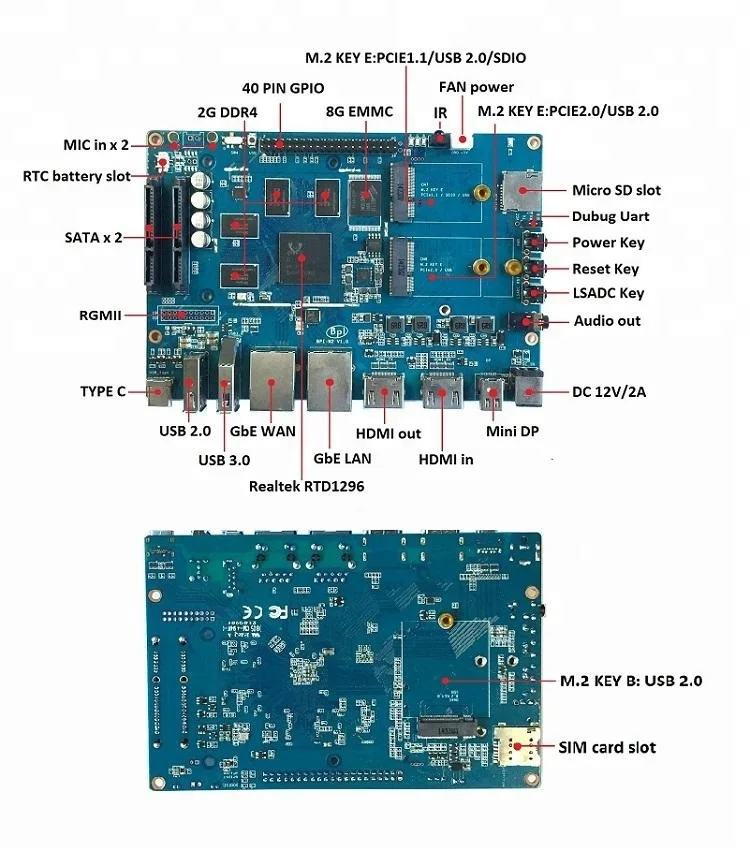

BPI-W2 integrate a Quad-core ARM Cortex-A53 MPcore operating up to 1.5GHz, The Router also includes a variety of peripherals, including HDM1 RX/TX, Mini DP, PCIe2.0,PCIe1.1&SDIO,M.2 interface, USB 2.0 , USB3.0 Port,TYPE C, SATA port，2 Gbps Port Gigabit Ethernet port, also support 802.11ac/n WLAN connection thru PCI-e port
BPI-W2 can run with Android6.0 smoothly, it also can run OpenWRT, Debian, Linux, Ubuntu linux, Raspbian and others OS. The size of Banana Pi BPI-W2 same asBPI- R2, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with Raspberry Pi3
More specs follow below.
-
Realtek RTD1296, Quad-core ARM Cortex-A5
-
Mali T820 MP3 GPU
-
2G DDR4 SDRAM
-
PCIE 2.0 interface.PCEe 1.1&SDIO
-
support 2 SATA interface
-
MicroSD slot supports up to 256GB expansion
-
8G eMMC flash (option 16/32/64G)
-
Mini DP
-
2 port 10/100/1000 Mb Ethernet port
-
(1) USB 3.0 and (2) USB 2.0,otg port
-
1080P high-definition video playback
-
HDM1 In/Out
-
TYPE C interface
