BPI-P2 Maker quad core single-board computer without EMMC and WIFI
Introduction

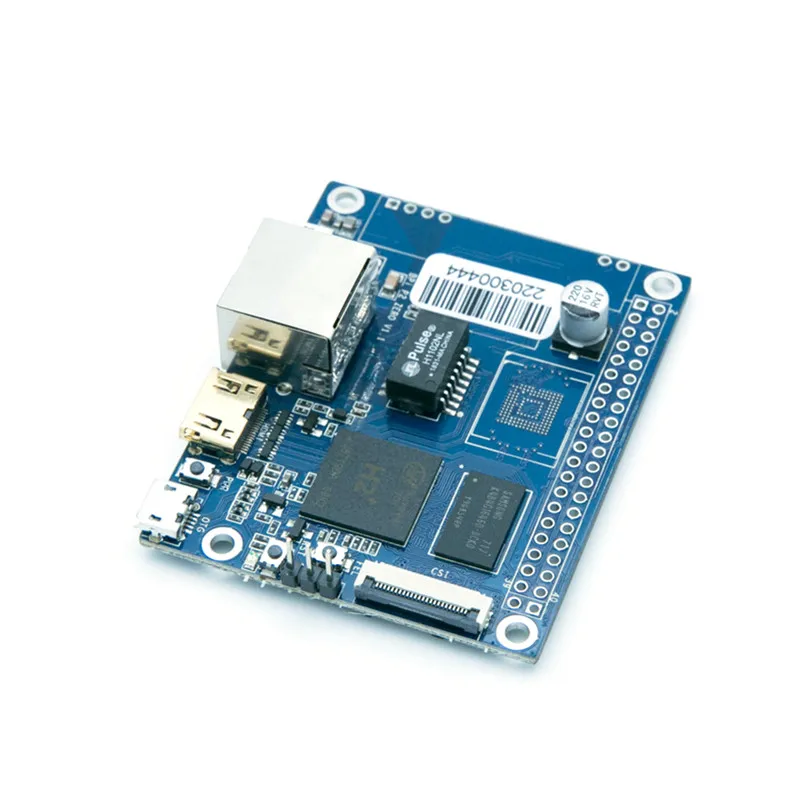

Banana Pi BPI-P2 Maker is an ultra compact single board computer measures only 65mm*52.5mm. It uses quad-core Cortex A7 allwinner H2+ processor(Option : H3 and H5), with 512MB RAM memory. no eMMC flash,100M LAN,add PoE function support , It's ideal for light-weight systems with some space-limited applications. Like other members of Banana Pi, it supports both linux and android operating system.
Bundle one: Single P2 Maker
Bundle two: P2 Maker come with RT9600 POE Module
Please note : The difference with P2 zero is that there is no EMMC and WIFI&BT
Key Features
-
CPU: Allwinner H2+, Quad-core Cortex-A7.
-
512MB DDR 3 SDRAM.
-
Mini HDM1.
-
40 PIN GPIO,It includes UART, SPI, I2C, IO etc
-
100M LAN
-
IEEE 802.3af PoE standard PoE module suppor
-
-
1,BPI-P2 Maker with 100M LAN interface ,BPI-M2 Zero with PIN define for 100M lan , use way is same.
-
2,PoE function support on board.Hardware spec
HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W Module Banana Pi BPI-P2 Maker Banana Pi BPI-M2 Zero Raspberry Pi Zero W CPU H2+ Quad-core Cortex-A7 H265/HEVC 1080P H2+ Quad-core Cortex-A7 H265/HEVC 1080P Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core GPU Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 VideoCore IV Memory \(SDRAM\) 512M DDR3(shared with GPU) 512M DDR3(shared with GPU) 512 MB DDR2 Onboard Storage TF card \(Max. 64GB\) TF card \(Max. 64GB\) TF card \(Max. 64GB\) Onboard Network 100M LAN NOPE (but can extension with PIN define) NOPE PoE power PoE function support NOPE NOPE Onboard flash NOPE NOPE NOPE Onboard WIFI NOPE SDIO AP6212(option AP6181、AP6335) 802.11n wireless Bth 4.1 Video decoding 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder Video input A CSI input connector Camera A CSI input connector Camera CSI camera connector Video Outputs mini HDM1 1.4,1080P@30fps, DHCP mini HDM1 1.4,1080P@30fps, DHCP Mini HDM1 and USB On-The-Go ports Audio Output Mini HDM1 Mini HDM1 Mini HDM1 Power Source Micro USB with 5V/2A or PoE power Micro USB with 5V/2A 5V/2A USB 2.0 Ports one USB 2.0 OTG one USB 2.0 OTG one USB 2.0 OTG Buttons Power Button, Reset Button Power Button, Reset Button Composite video and reset headers Low-level peripherals 40 Pins Header,compatible with Raspberry Pi 3 40 Pins Header,compatible with Raspberry Pi 3 40 PIN uart GPIO\(1x3\) pin UART, ground UART, ground UART LED Power led & Status led Power led & Status led Power Status LED IR N/A N/A N/A Supported OS android linux android linx Linux Product size 65mm X 52.5mm 65mm × 30mm 65mm x 30mm Weight 30g 15g 9g GPIO PIN define[edit]
Banana Pi BPI-P2 Mrker GPIO same as BPI-M2 Zero ,it has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:
40 PIN GPIO of Banana pi BPI-P2 Maker GPIO Pin Name Default Function Function2:GPIO Function3 CON2-P01 VCC-3V3 CON2-P02 VCC-5V CON2-P03 TWI0-SDA PA12-EINT12 CON2-P04 VCC-5V CON2-P05 TWI0-SCK PA11-EINT11 CON2-P06 GND CON2-P07 PWM1 PA6-EINT6 CON2-P08 UART3-TX PA13-EINT13 SPI1-CS CON2-P09 GND CON2-P10 UART3-RX PA14-EINT14 SPI1-CLK CON2-P11 UART2-RX PA1-EINT1 CON2-P12 UART3-CTS PA16-EINT16 SPI1-MISO CON2-P13 UART2-TX PA0-EINT0 CON2-P14 GND CON2-P15 UART2-CTS PA3-EINT3 CON2-P16 UART3-RTS PA15-EINT15 SPI1-MOSI CON2-P17 VCC-3V3 CON2-P18 PC4 PC4 CON2-P19 SPI0-MOSI PC0 CON2-P20 GND CON2-P21 SPI0-MISO PC1 CON2-P22 UART2-RTS PA2-EINT2 CON2-P23 SPI0-CLK PC2 CON2-P24 SPI0-CS PC3 CON2-P25 GND CON2-P26 PC7 PC7 CON2-P27 TWI1-SDA PA19-EINT19 CON2-P28 TWI1-SCK PA18-EINT18 CON2-P29 PA7-EINT7 PA7-EINT7 CON2-P30 GND CON2-P31 PA8-EINT8 PA8-EINT8 CON2-P32 PL2-S-EINT2 PL2-S-EINT2 CON2-P33 PA9-EINT9 PA9-EINT9 CON2-P34 GND CON2-P35 PA10-EINT10 PA10-EINT10 CON2-P36 PL4-S-EINT4 PL4-S-EINT4 CON2-P37 PA17-EINT17 PA17-EINT17 SPDIF-OUT CON2-P38 PA21-EINT21 PA21-EINT21 CON2-P39 GND CON2-P40 PA20-EINT20 PA20-EINT20 CSI Camera Connector specification:
The CSI Camera Connector is a 24-pin FPC connector which can connect external camera module with proper signal pin mappings. The pin definitions of the CSI interface are shown as below. This is marked on the Banana Pi board as “CSI″.
24 PIN CSI Camera connector of Banana pi BPI-P2 Maker CSI Pin Name Default Function Function2:GPIO CN3-P01 NC CN3-P02 GND CN3-P03 CSI0-SDA PE13 CN3-P04 CSI0-AVDD CN3-P05 CSI0-SCK PE12 CN3-P06 CSI0-Reset PE14 CN3-P07 CSI0-VSYNC PE3 CN3-P08 CSI0-PWDN PE15 CN3-P09 CSI0-HSYNC PE2 CN3-P10 CSI0-DVDD CN3-P11 CSI0-DOVDD CN3-P12 CSI0-D7 PE11 CN3-P13 CSI0-MCLK PE1 CN3-P14 CSI0-D6 PE10 CN3-P15 GND CN3-P16 CSI0-D5 PE9 CN3-P17 CSI0-PCLK PE0 CN3-P18 CSI0-D4 PE8 CN3-P19 CSI0-D0 PE4 CN3-P20 CSI0-D3 PE7 CN3-P21 CSI0-D1 PE5 CN3-P22 CSI0-D2 PE6 CN3-P23 GND CN3-P24 CSI0-DOVDD UART specification:
The jumper CON3 is the UART interface. For developers of Banana Pi, this is an easy way to get the UART console output to check the system status and log message.
jumper CON3 of Banana pi BPI-P2 Zero CON3 Pin Name Default Function GPIO CON3 P03 UART0-TXD PA4 CON3 P02 UART0-RXD PA5 CON3 P01 GND
-
-
Hardware
BPI-P2 Maker, just change on BPI-P2 Zero , without 8GB EMMC and WIFI& BT onboard, other hadware design same as BPI-M2 Zero.so all software is same .
