INTRODUCTION
Latest Updates(2019/02/03):
- Due to Intel's capacity problems, the supply of Alpha's CPU M3-7y30 will face a continuous shortage. To solve the problem, LattePanda team updated its CPU to Intel 8th M3-8100y, correspondingly, Alpha 800 models will be upgraded to Alpha 800s. It will improve the whole performance 30% on the basis of previous 7th M3-7y30 version.
The Core m3 processor is the perfect choice for superior performance and low power consumption. We have shrunken this computing monster from a laptop to the size of a phone.
The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HD to connect different systems for seamless interaction of two different systems.
FEATURES
- Solid Spec and Extreme Design
- Dual OS Support – Windows / Linux Both
- Ultimate Networking on Cloud and Things
- Up to 42 Extendable Interfaces bring Rich Playabilities

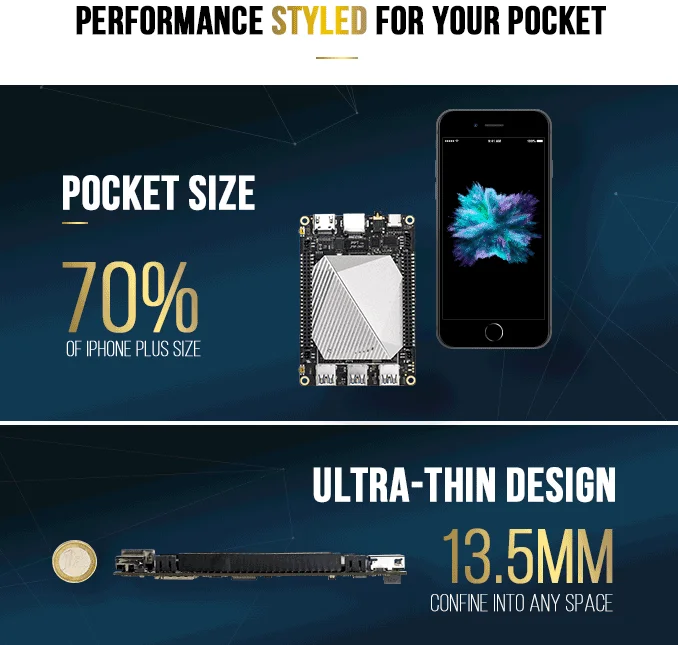

- Ultra-Thin Design, Minimizing Space Occupation
- Rebuild How to Code Efficiently with Multiple OS
SPECIFICATION
- CPU：Intel 8th m3--8100y
- Core：1.1-3.4GHz Dual-Core，Four-Thread
- Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
- Graphics：Intel HD Graphics 615, 300-900MHz
- RAM：8G LPDDR3
- External Memory：
1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM - Connectivity：
WIFI 802.11 AC, 2.4G & 5G
Dual Band 4.2
Gigabyte Ethernet - USB Ports：
3x USB 3.0 Type A
1x USB Type C, supports PD, DP, USB 3.0 - Display：
HDOutput
Type-C DP Support
Extendable eDP touch displays - Co-processor：Ard Leonardo
- GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
- OS Support：
Windows 10 Pro
Linux Ubuntu - Dimension: 115mm * 78mm * 14 mm
SHIPPING LIST
- LattePanda Alpha 800s (or 864s/864s Win10 Pro activated) x1
- Free Gift - Active cooling fan x1
- Free Gift - 45w PD Power adapter x1
