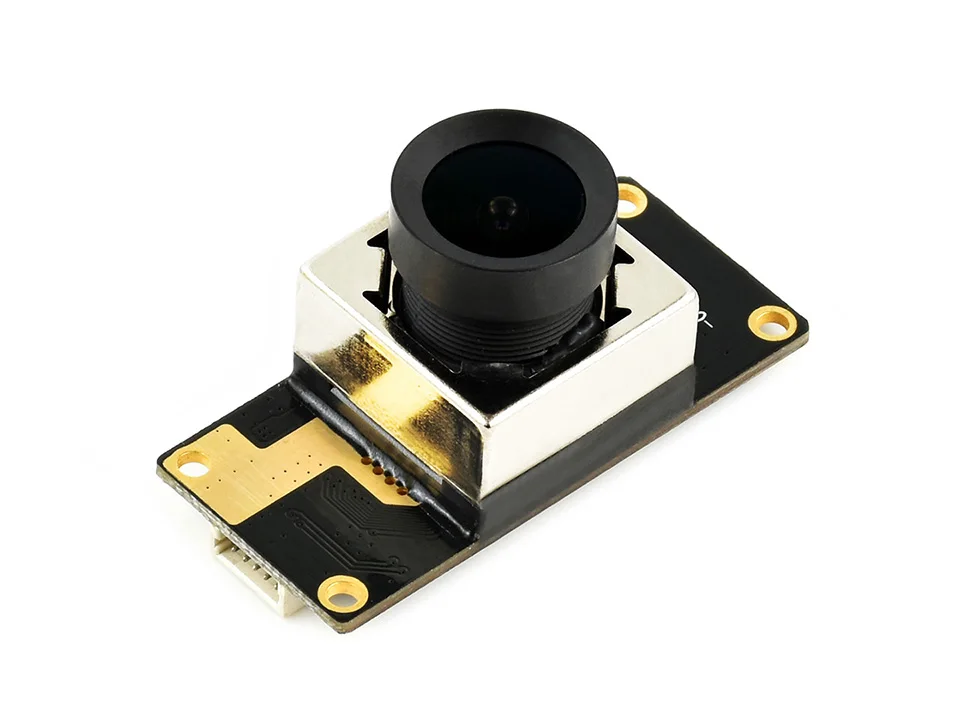

OV5640 5MP USB Camera, Auto Focusing, Video Recording, Plug-And-Play, Driver Free
5MP M12 CAMERA MODULE
OV5640 Sensor, USB Port, Auto Focusing
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | OV5640 | |
| INTERFACE | USB (UVC 1.0 compliant) | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.1 | |
| Focal length (EFL) | 2.5 mm | |
| Field of view (FOV) | 135°(D) 95°(H) 70°(V) | |
| Focusing | Auto focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 5 FPS 2592 × 1944 (Full Frame) 15 FPS 1920 × 1080 (Full HD) 15 FPS 1280 × 720 (720P) |
|
| OPERATING VOLTAGE | 5V ± 5% | |
| CAMERA SIZE | 18.00 × 18.00 × 19.39 mm | |
| MODULE SIZE | 18.00 × 36.00 mm | |
| SUPPORTED OS | Windows, Linux, mac OS | |

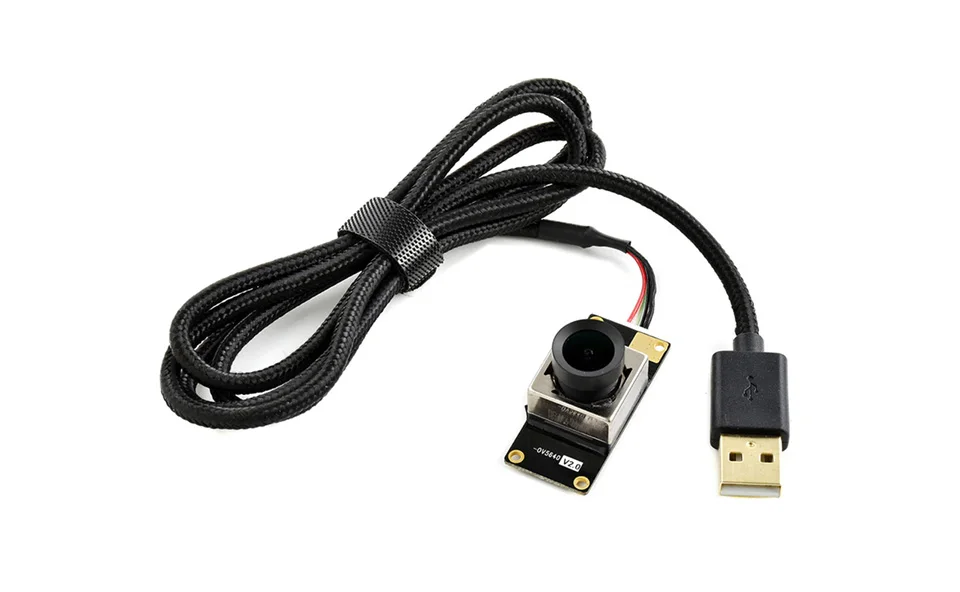

Connecting With USB Cable

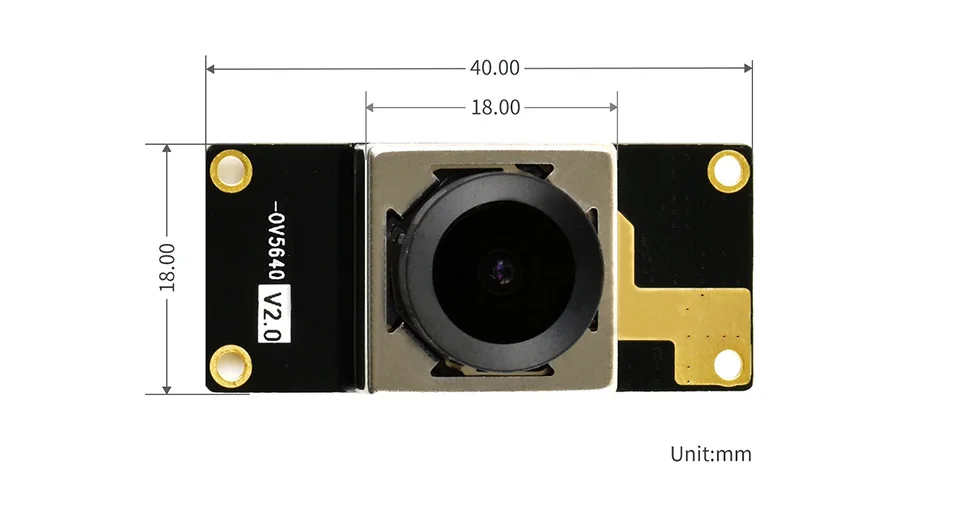

Outline Dimensions
Selection Guide
| PART NUMBER | PIXELS | SENSOR | BEST RESOLUTION | DIMENSION | FIELD OF VIEW | FEATURE |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38mmx38mm | 145° | Low-light sensitivity |
| OV5640 5MP USB Camera (A) | 5MP | OV5640 | 2592x1944 | 18×36mm | 135° | Auto focusing |
| OV5648 5MP USB Camera (A) | 5MP | OV5648 | 2592x1944 | 9mmx62mm | 70° | Small in size |
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106° | Manually focusing |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38mmx38mm | 145° | HD, Embedded digital mic |
PACKAGE CONTENT
Weight: 0.039 kg
- OV5640 5MP USB Camera (A) x1
