Intruduction

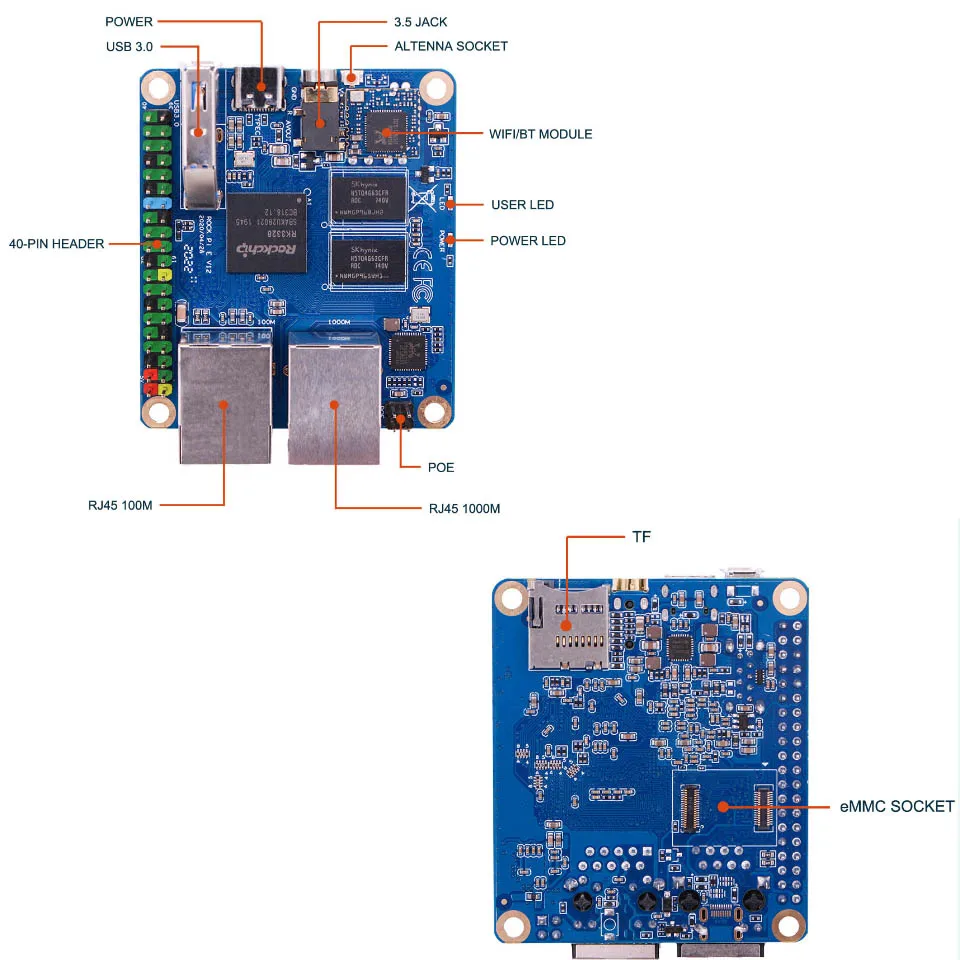

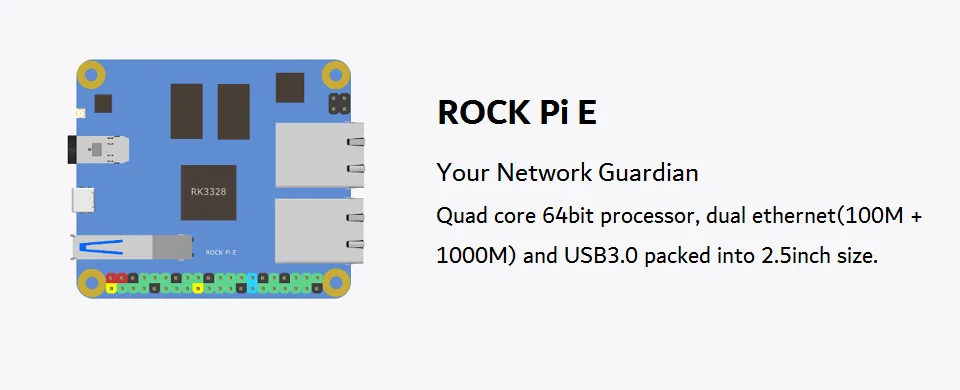

ROCK Pi E is a Rockchip RK3328 based SBC(Single Board Computer) by Radxa. It equips a 64bits quad core processor, USB 3.0, dual ethernets, wireless connectivity at the size of 2.5x2.2 inch(56x65mm), making it perfect for IoT and network applications. ROCK Pi E comes in various ram sizes from 512MB to 4GB DDR3, and uses uSD card for OS and storage as well as supporting eMMC module. Optionally, ROCK Pi E supports PoE, additional HAT is required.
Specification
|
Model |
ROCK Pi E |
|
|
Processor |
SoC RK3328 |
|
|
Memory |
256MB / 512MB / 1GB / 2GB DDR3 |
|
|
Storage |
MicroSD(TF) up to 128GB |
|
|
Wireless |
802.11 b/g/n wifi |
|
|
USB |
USB3.0 Type-A HOST x1 |
|
|
Key |
Reset key x1 |
|
|
Ethernet |
1x 1000Mbit ethernet, optional PoE(additional HAT required) |
|
|
IO |
40-pin expansion header |
|
|
Others |
LEDs |
|
|
Power |
USB Type-C DC 5V |
|
|
Size |
2.5x2.2 inch(56x65mm) |
|
