T-SIM7070G/T-SIM7000JC is the T-SIM series version. The T-SIM series currently has the SIM7000G universal version and the SIM7000JC Japanese version, and the 4G SIM7600G version. Among them, SIM7070G, SIM7000JC and SIM7000G are compatible versions, but only certified Certificate difference. The SIM7600G belongs to the 4G communication version.
T-SIM7070G/T-SIM7000JC/T-SIM7000G Product Description
Hardware Specifications:
-
-Module: ESP32-WROVER-B,SIM7000G
-
-Interface:USB,SD Card,Solar Input interface
-
-Flash: 4M Flash
-
-PSRAM: 8M PSRAM
-
-Button: Reset,Power switch
-
-USB to TTL: CP2104
-
-Car Clock: 40MHz
-
-SIM Card Size: Nano SIM Card
-
-SIM Antenna IPEX
-
-GPS Antenna IPEX
-
-Product Size: 111mm * 37mm * 20mm
-
-Product Weight: 50g
-
-Power Specifications
-
-Working Voltage: 5v input
-
-Solar input voltage range:4.4-6v
-
-Working Curent: About 200mA
-
-Charging Current: 780mA
-
-Battery Holder Model: 18650 battery holder
-
-Battery power protection reset button
-
-Battery powered switch
-
-Main control chip reset button
-
-Solar interface:JST Connector 2pin 2mm
-
-USB: TYPE-C 3.0
-
-Wi-Fi
-
-Blth
SIM7000G/SIM7070G/SIM7000JC module parameters
Pin diagram

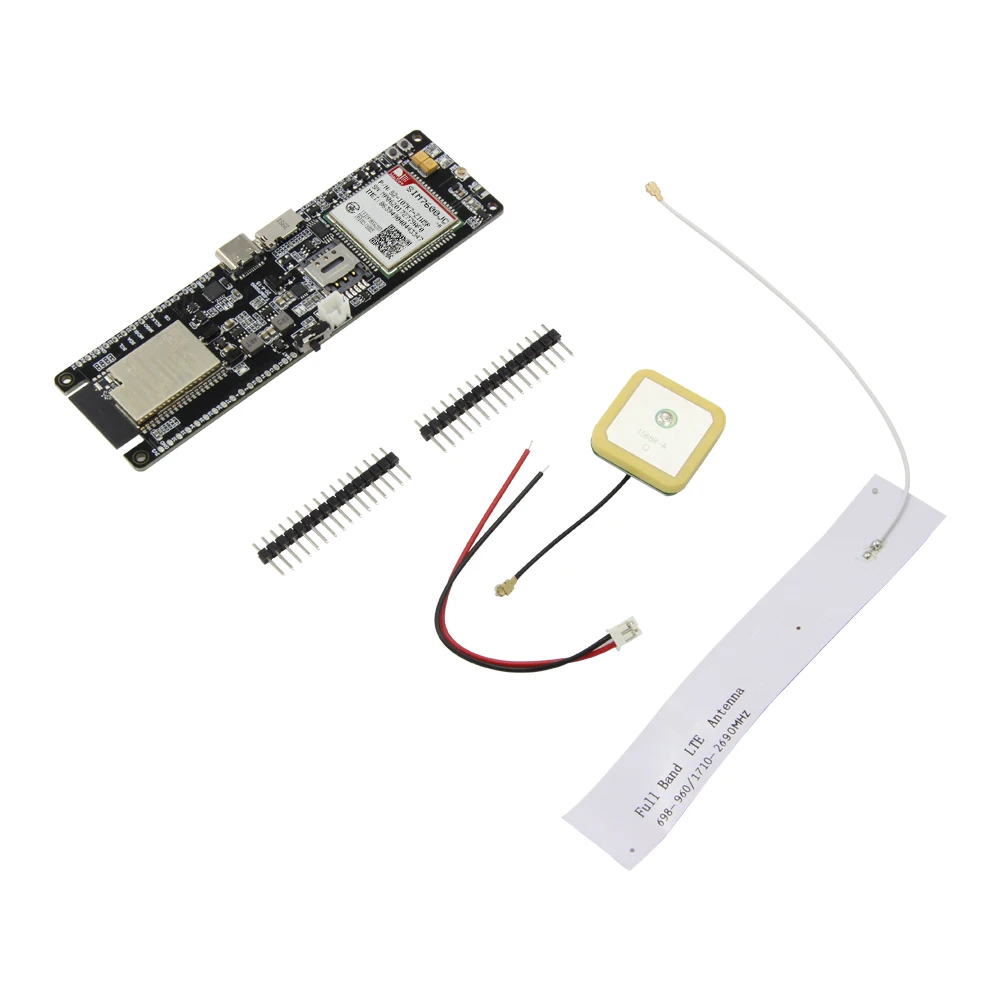

Shipping List
T-SIM7000JC version:
T-SIM7000JC module X 1
LTE antenna X 1
GPS antenna X 1
T-SIM7070G version:
T-SIM7070G module X 1
LTE antenna X 1
GPS antenna X 1
