0.5V 130MA
Feture: Voltage:0.5V Current: 130MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 18*54MM Package include: 1*Solar panel
1V 80MA
Feture: Voltage:1V Current: 80MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 25*25MM Package include: 1*Solar panel
2V 130MA
Feture: Voltage:2V Current: 130MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 38*58MM Package include: 1*Solar panel
3V 120MA
Feture: Voltage:3V Current: 120MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 52*52MM Package include: 1*Solar panel
3V 150MA
Feture: Voltage:3V Current: 150MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 60*55MM Package include: 1*Solar panel

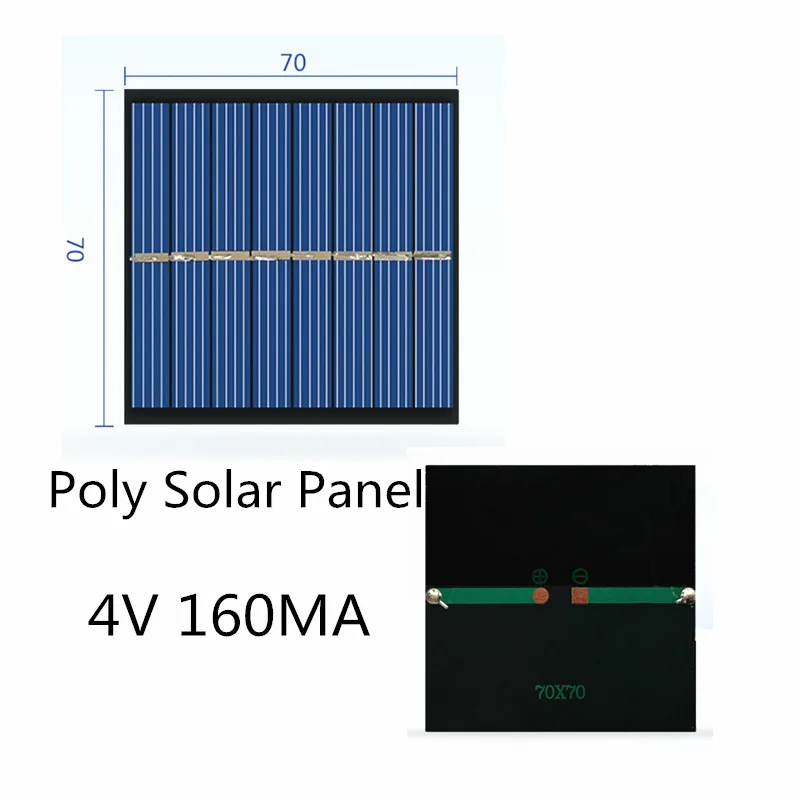

4V 160MA
Feture: Voltage:4V Current: 160MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 70*70MM Package include: 1*Solar panel
6V 210MA
Feture: Voltage:6V Current: 210MA Process: Epoxy Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane Size: 133*73MM Package include: 1*Solar panel
Solar Charger
This is a supper mini Solar Lipo charger based on the CN3065 - a single lithium battery charge management chip. This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging! The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.
Features:
Solar panel input: 4.4-6V Max charge current: 500Ma Interface: 2-pin JST connectors(or PH2.0) Short circuit protection Continuous Charge Current Up to 500mA Battery status indication ( Red : Charging , Green: Charged ) Micro-USB Connector
1S Power display
How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube displays the real-time battery power Display battery parameters: (Remarks: N is the number of battery cells) (The following data is a reference value, there will be an error range of about 2%, do not shoot if high accuracy is required) The battery voltage is greater than N × 3.3V, with 1 grid lit The battery voltage is greater than N × 3.5V, with 2 grids on The battery voltage is greater than N × 3.7V, with 3 grids on The battery voltage is greater than N × 3.9V, with 4 grids on The battery voltage is less than N × 3.3V, and the four-segment display is all off, indicating that the battery is below 3.3V, and it is time to charge the battery.
1S 18650 Battery Holder
CH2 Quick Splice Lock Wire Connector

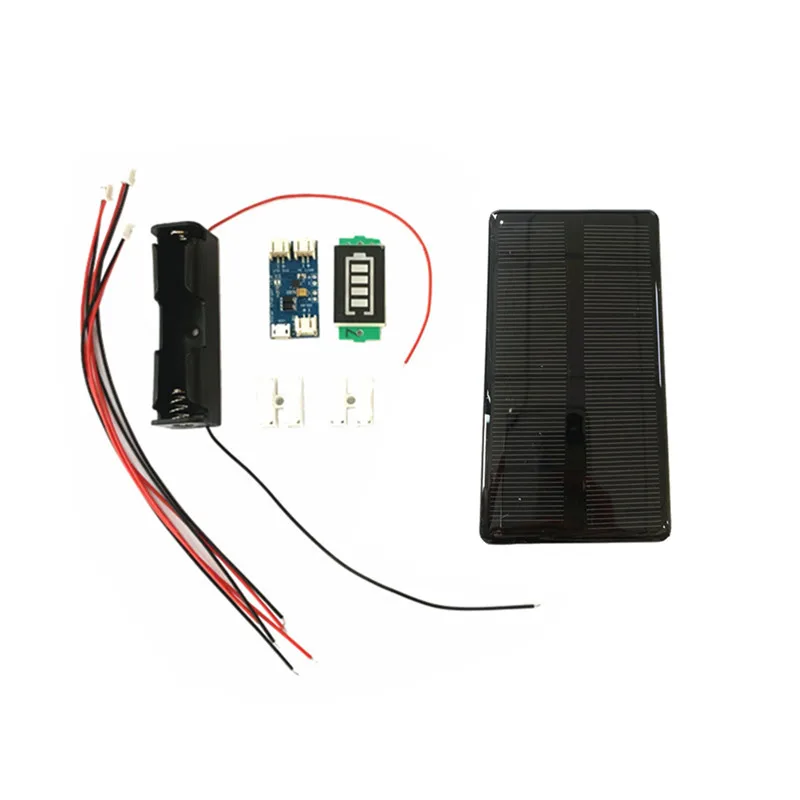

Package Include
All set Package Include (battery not include ) 1* Solar Panel 1*1S display 1* Solar charger 1* 1S battery Holder 2* CH2 Connector 3* Cable
